INSIZE Vernier Height Gauge 0-300mm/12" with Carbide Tipped Scriber New

Roll over or click to zoom in

See more from INSIZE

Model: 1250-300

UPC: 6928640302794

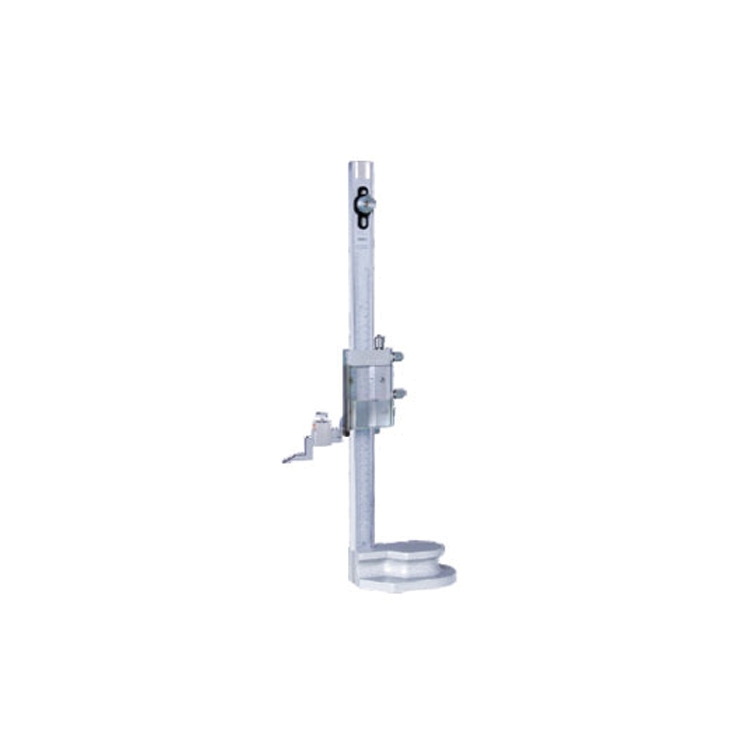

Ensure precision with the INSIZE 1250-300 Vernier Height Gauge. This tool offers a 0-300mm/12" range with 0.02mm graduation. Built with stainless steel, it features a carbide-tipped scriber, satin chrome scale, and a built-in magnifier for easy reading. The adjustable main scale and fine adjustment mechanism allow for rapid, accurate setup. Includes a dust cover for protection. Optional accessories available for versatility.

Features

• Precise Measurement: 0-300mm/0-12" range with 0.02mm/0.001" graduation
• Durable Build: Crafted from high-quality stainless steel (except the base)
• Carbide Scriber: Equipped with a long-lasting carbide tipped scriber
• Easy Reading: Features a clear satin chrome plated scale
• Magnifier Included: Comes with a built-in magnifier for improved visibility

• Fine Adjustment: Includes fine adjustment mechanism for exact positioning
• Adjustable Scale: Main scale is adjustable to set zero easily
• Dust Protection: Supplied with a protective dust cover
• Optional Holders: Compatible with dial test indicator holder (6293-6)
• Clamping Option: Supports optional clamp for protractors (2372-CLAMP)
